Description

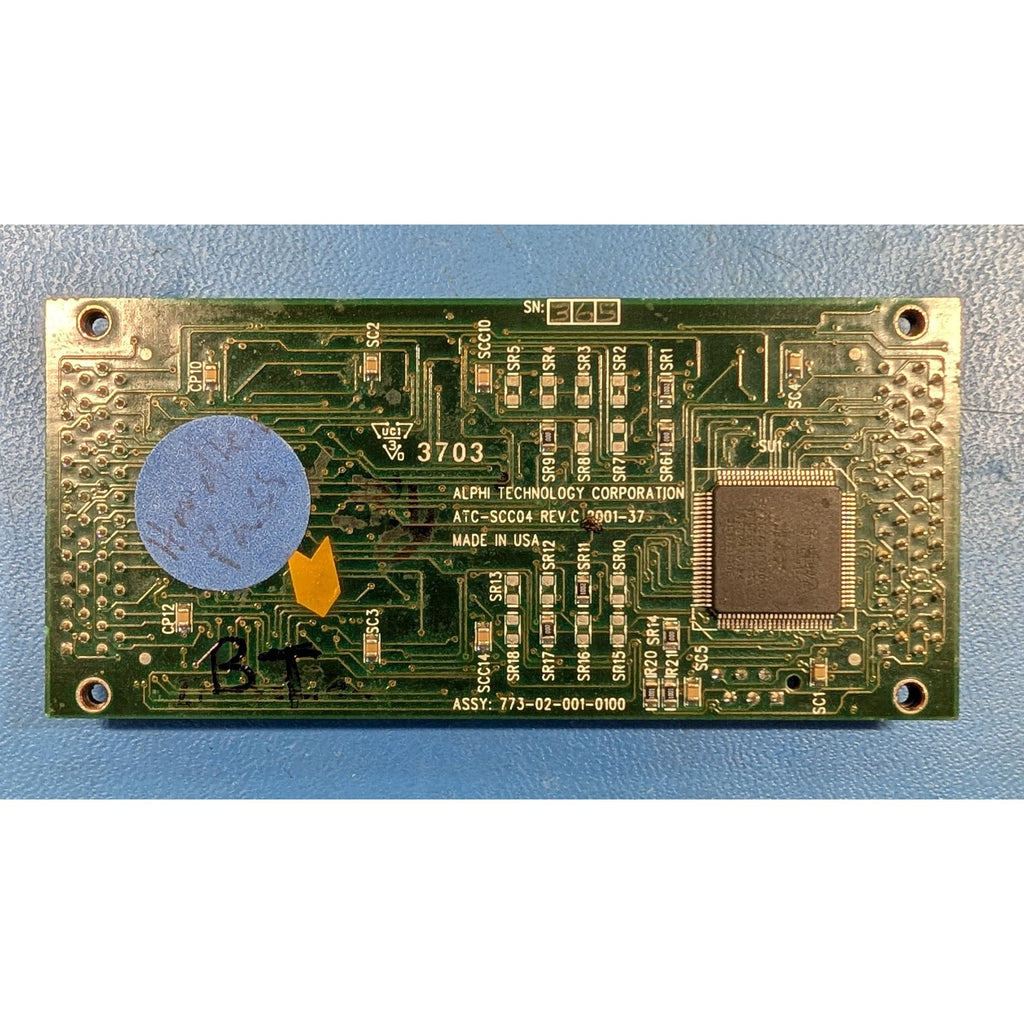

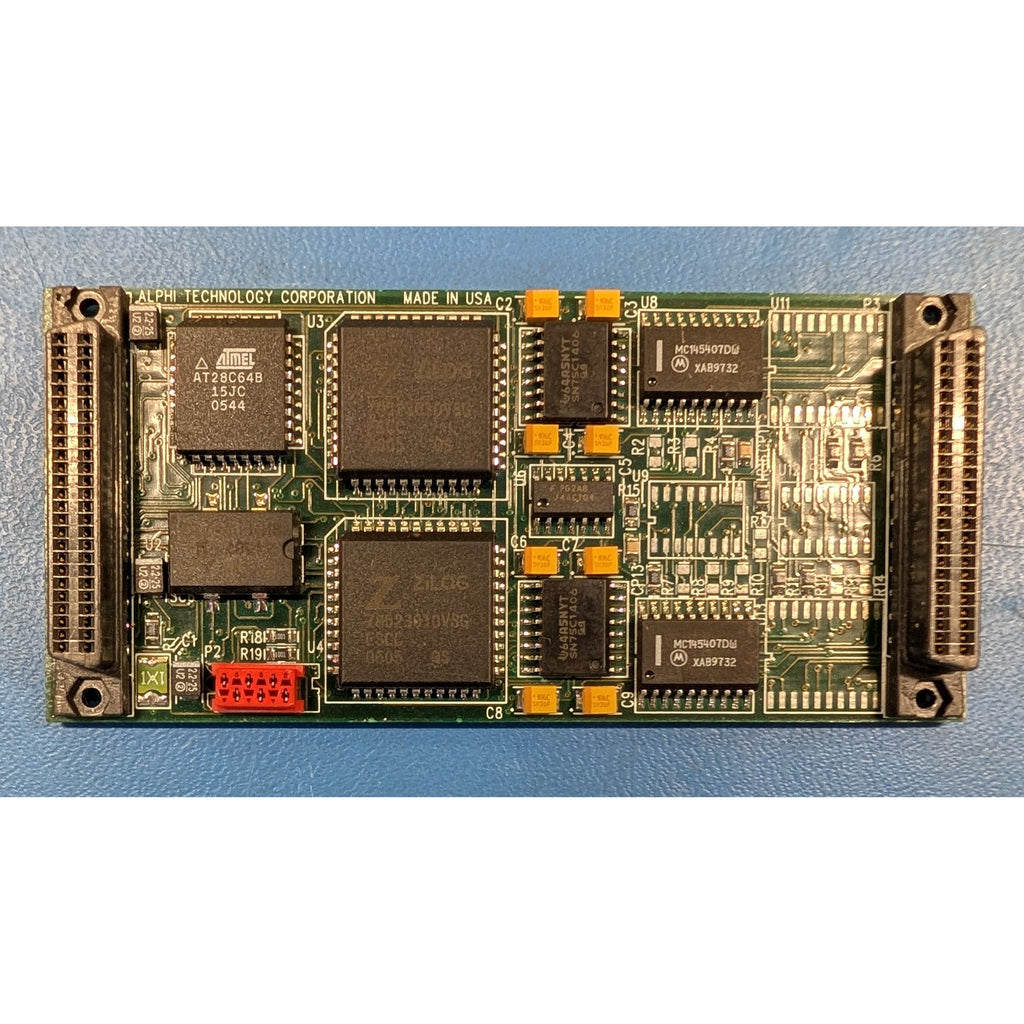

ATC-SCC04 Quad Serial I/O
The ATC-SCC04 module is a quad channel serial communication controller. The ATC-SCC04 module is based on two enhanced Z85230, with larger FIFOs and several SDLC improvements from Zilog. This module provides four asynchronous ports up to 115 kbaud and synchronous ports up to 2 Mbaud full-duplex channels, with an independent baud rate generator for each channel.
FEATURE SUMMARY
• Two Z85230 enhanced controllers
• Quad synchronous / Asynchronous serial ports
• RS-232 or RS-422, RS-485 HDLC, SDLC
• Individual baud rate generators per port
• 115 Kbits Async. Upto 2 Mbits Sync.
• Full handshake control line
• Low power 375mA typ.
• 0 to +70 opt. -45 to +85
• Humidity 5 to 95 non-condensing
• Software examples included
• VxWorks available
• Full modem control
• Single wide Industry Pack
