Description

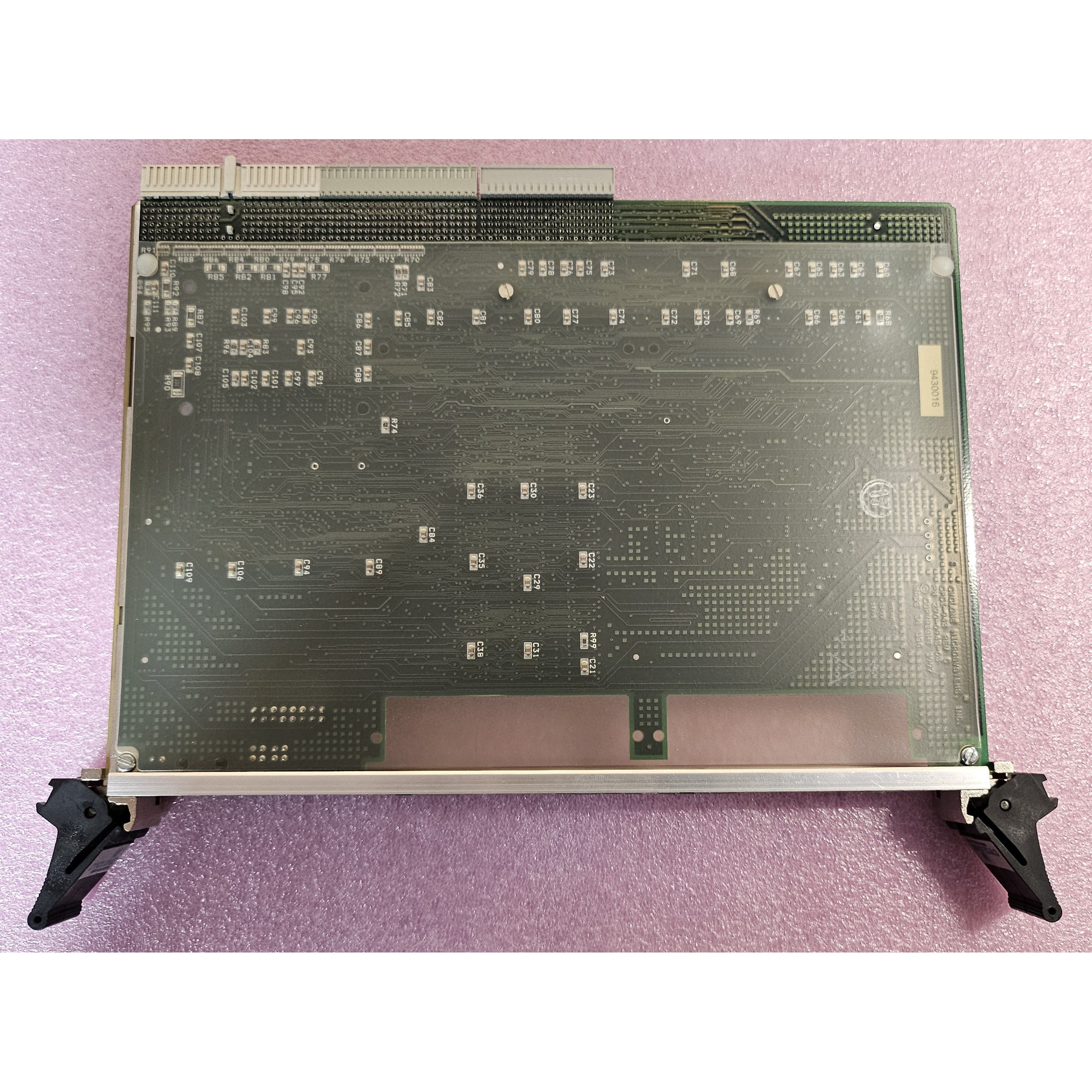

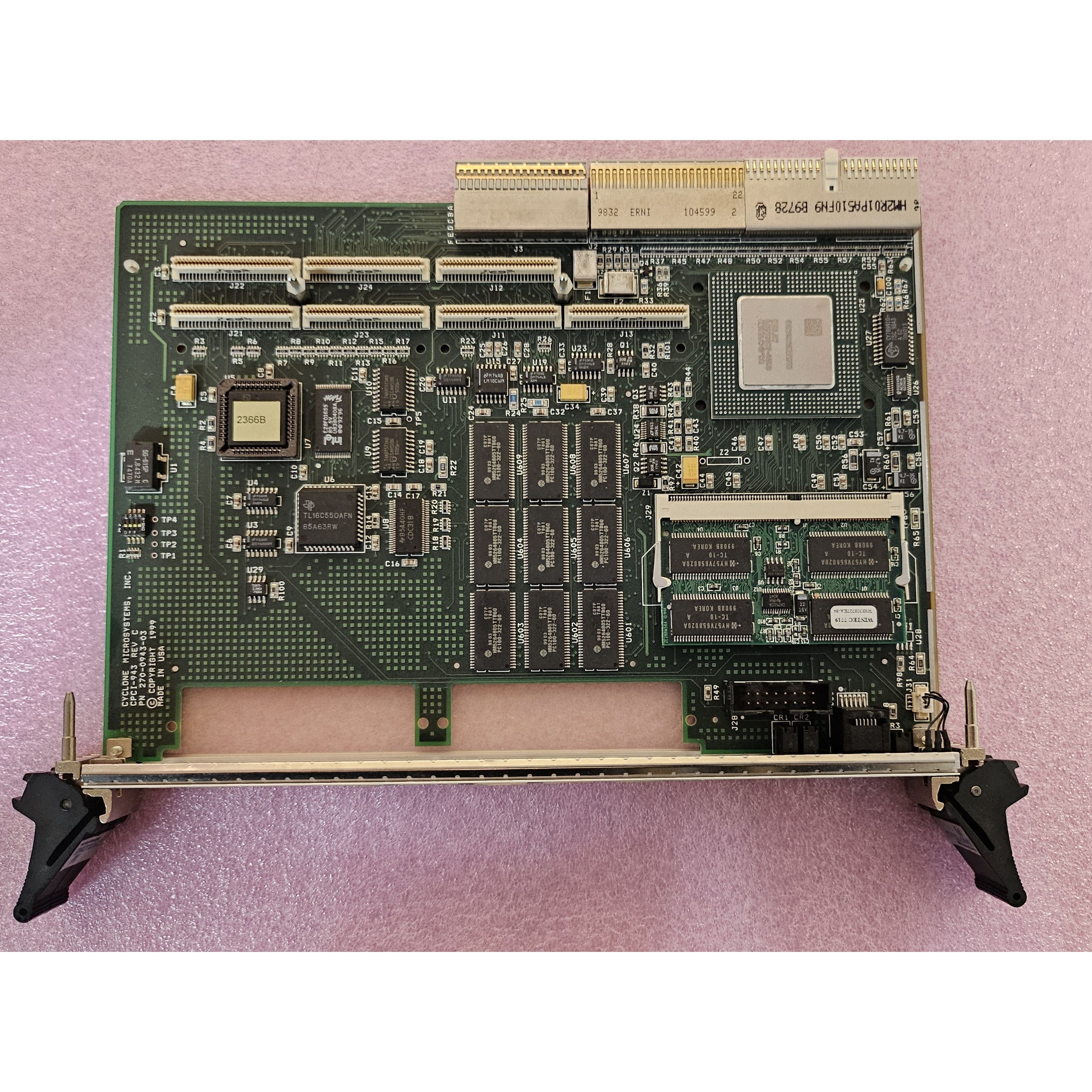

Cyclone Microsystems - CPCI-943
•i960RN RISC Microprocessor
•64-bit Primary PCI interface (33 MHz)
•Master and Slave transactions on the CompactPCI bus
•Two DMA Channels
•Mailboxes and Doorbell Registers
•I2O Messaging FIFOs
•Works in 32-bit CompactPCI bus
•CompactPCI Hot Swap compliant
•64 to 128 Mbytes SDRAM with ECC 528 Mbyte/s peak bandwidth
•64-bit Secondary PCI interface (33MHz)
•Two PMC modules locations on Secondary PCI bus
•2 Mbytes Flash ROM
•Console Serial Port
•Two 32-bit Counter/Timers
•Breeze Development Environment with MON960 and Cyclone
•System Services
•Board Support Packages for Tornado/IxWorks and Tornado /VxWorks
•I2O Support
•CPCI-943 Block Diagram
